Spark plug wear chart. General wear spark plug has come to the end of its life. 002004 mm1000 km 0000126000252 inches1000 miles. K This is often caused by over advanced ignition timing poor engine cooling system efficiency scale stoppages low level a very lean airfuel mixture or a leaking intake manifold.
Advanced-engineered Champion Aerospace spark plugs are designed for the critical difference in performance far beyond the ordinary. Longer lasting than platinum spark plugs Iridium S plugs resist lead attack and provide better scavenging than standard platinum. Dark brown or Black Spark Plug.
The pictures and text are from the Autolite technical manual and just made a bit easier to read in the grand scheme of EZ-Read charts here. ISSUED REVISED Aero Accessories Inc. A light tangray or brownish color along.
Wear factors for spark plugs. A worn spark plug not only wastes fuel but also strains the whole ignition system because the expanded gap due to erosion requires higher voltages. When these conditions prevail even a plug of the correct heat range will overheat.
Normal rates of gap growth are as follows. There are several factors that play a role in spark plug health but the most common reason for them to wear out is that theyre just old. Just needed some text that was readable.
Spark Plug Color Chart - Reading Your Plugs This page is nothing new. Fine Wire Spark Plugs To Clean or Not to Clean That is the Question. The spark plug is wet with gasoline immediately after it is removed but it soon dries off.
Champion spark plugs stand up to high temperatures pressures and deposits. Having a bad spark plug or fouled spark plug can also cause all sorts of. A spark plug sometimes in British English a sparking plug and colloquially a plug is a device for delivering electric current from an ignition system to the combustion chamber of a spark-ignition engine to ignite the compressed fuelair mixture by an electric spark while containing combustion pressure within the engineA spark plug has a metal threaded shell electrically.
Oil fouled see valves or piston rings White no color on spark plug. Oil could be leaking into the cylinders getting past pistons that are. Black oily Spark Plug.
DC-4 or DC-200 Compound Recommended To Prevent Connector Grommets From Sticking. Place them in a Tempest spark plug tray PN T240 and follow the rotation guide supplied on every Tempest spark plug box or in section 439 of our spark plug maintenance manual in the Technical Data portion of our website. If everything is good the spark plug should have a tanlight brown color.
There should be no buildup on the sparking. Four Stroke Engines001-002mm1000 km 000063-0000126 inches1000 miles Two Stroke Engines002-004 mm1000 km0000128-000252 inches1000 miles. REVISION MO DAY YEAR 02 10 Cover -B 10 Technical Reference 11 Description and Operation The spark plug is the last component in the ignition.
Nickel alloy electrodes provide excellent resistance to spark. A worn spark plug not only wastes fuel but also strains the whole ignition system because the expanded gapdue to erosion requires higher voltagesNormal rates of gap growth are as follows. You can find Images and PDFs from Autolite NGK and other on how to read the color and condition of your spark plugs.

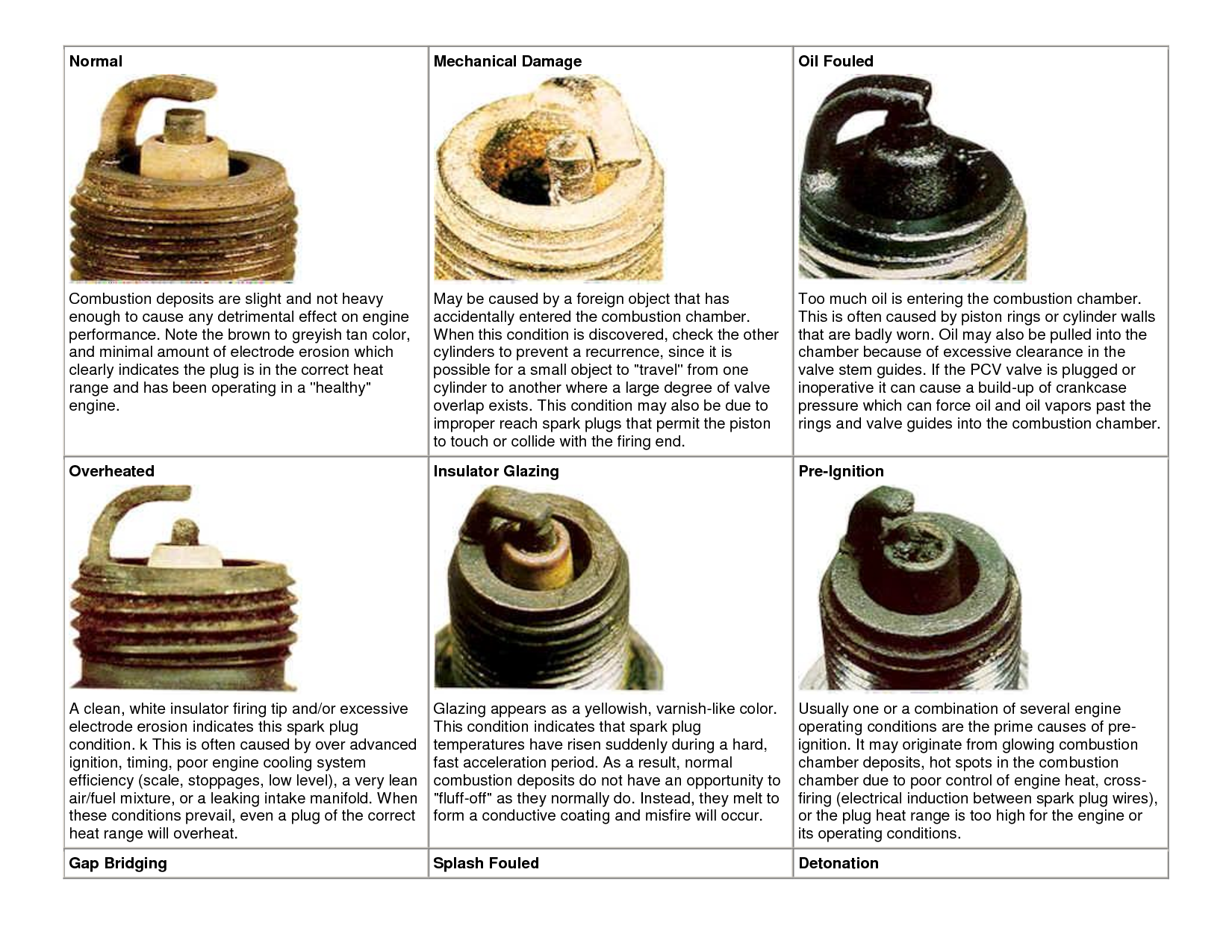

Black oily deposits on the electrodes and insulator tip points to an oil-fouled plug. This will help even out electrode wear caused by constant polarity and capacitance after-fire. A spark plug that is not damaged will appear light grey or possibly tan.
Spark plugs do wear out over time although the actual lifespan varies depending on the type of plug in question the condition of your engine and your driving habits. A clean white insulator firing tip andor excessive electrode erosion indicates this spark plug condition. The symbol is composed of a rating.
Check carburetor mixture settings float level choke operation and air filter. Dry black soot-like deposits. Copper core assures effi cient heat transfer and maximum electrical conductivity.
However the greyish tanwhite colour indicates that the plug is the correct heat range and also that the fuelignition systems and engine are generally in good. With help from the spark plug experts at NGK well teach you how to diagnose minor tuning issues or potentially major engine problems by examining your spark plugsCheck out the images below courtesy of NGK Spark Plugs and get ready to do a little light reading the next time you pull your spark plugs. Caused by rich running.
Prevents wear from voltage drain for prolonged plug life. Top Spark Plugs To BottomBottom Spark Plugs To The Top. Your mechanic can offer you advice on what type of spark plug to buy to replace the damaged plug but you may want to consider switching to a hotter spark plug the higher the spark plug number the hotter the plug.
A build-up of heavy light-grey sandy deposits. If your engine is running too rich the spark plug will be black and sooty. By simply reading spark plugs for wear and deposits you can quickly discover whether your spark plugs are either worn out getting too much gas rich too little gas lean running too hot burnt wet cracked and whether its time to change them.
All Champion Aerospace spark plugs are identifi ed by type designations as indicated on the following spark plug number and symbol chart. Plugs are ideally suited to engine engine probably in good condition. SPARK PLUG TROUBLE TRACER CHART Appearance.
Swap Spark Plug Location To. Spark plug incorrectly tightened engine cooling problem ignition timing too early spark plug heat range too low severely abnormal. Often caused by worn valve guides excessive use of upper cylinder lubricant or idling for long periods.
001002 mm1000 km 0000630000126 inches1000 miles Two-Stroke Engines. Loss of power when running at high speed or under high load. Poor starting and misfiring.
